Wednesday, January 02, 2002

Cat 235 Infrastructure

Course Study

·        Win’s

·        DNS

·        DHCP

·        Routing

•   Nat

General Info

·        Daily Journal= 1 token

·        Labs=2 tokens

·        Submit a passing Exam or 10 quizzes= 1 token

Topics

·        TCP/IP is 32 bit

·        Are we almost out of addresses?

·        When we run out of addresses we will go to IPv 6= 128 bit addressing scheme

·        There are four octets in a IP address

·        Addressing is done in base 2 = binary or hexadecimal

·        Decimal is base 10 numbering system

·        We are skipping 8 quads to 128 bit addressing scheme

·        128 will be backward compatible with 32 bit addressing scheme

·        The computer can only read in 1s and 0s

Overview: I have given 4 hours of study to this course today.

January 4., 2002 this date runs with January 3rd, as we studied binary and hexadecimal for 2 days

Class Addresses

·        Class A = 1- 126= first octet

·        Class B = 128-191 = second octet

·        Class C = 192-223 = third octet

The IP Address and Classes

Hosts and networks

IP addressing is based on the concept of hosts and networks. A host is essentially anything on the network that is capable of receiving and transmitting IP packets on the network, such as a workstation or a router. It is not to be confused with a server: servers and client workstations are all IP hosts.

The hosts are connected together by one or more networks. The IP address of any host consists of its network address plus its own host address on the network. IP addressing, unlike, say, IPX addressing, uses one address containing both network and host address. How much of the address is used for the network portion and how much for the host portion varies from network to network.

IP addressing

An IP address is 32 bits wide, and as discussed, it is composed of two parts: the network number, and the host number [1, 2, 3]. By convention, it is expressed as four decimal numbers separated by periods, such as "200.1.2.3" representing the decimal value of each of the four bytes. Valid addresses thus range from 0.0.0.0 to 255.255.255.255, a total of about 4.3 billion addresses. The first few bits of the address indicate the Class that the address belongs to:

Class         Prefix     Network Number    Host Number
  A            0          Bits 0-7          Bits  8-31
  B            10         Bits 1-15         Bits 16-31
  C            110        Bits 2-24         Bits 25-31
  D            1110       N/A
  E            1111       N/A

The bits are labeled in network order, so that the first bit is bit 0 and the last is bit 31, reading from left to right.
Class D addresses are multicast, and Class E are reserved. The range of network numbers and host
numbers may then be derived:

Class    Range of Net Numbers      Range of Host Numbers
A         0 to 126                  0.0.1 to 255.255.254
B         128.0 to 191.255          0.1 to 255.254
C         192.0.0 to 254.255.255    1 to 254

Any address starting with 127 is a loop back address and should never be used for addressing outside the host. A host number of all binary 1's indicates a directed broadcast over the specific network. For example, 200.1.2.255 would indicate a broadcast over the 200.1.2 network. If the host number is 0, it indicates "this host". If the network number is 0, it indicates "this network" [2]. All the reserved bits and reserved addresses severely reduce the available IP addresses from the 4.3 billion theoretical maximum. Most users connected to the Internet will be assigned addresses within Class C, as space is becoming very limited. This is the primary reason for the development of IPv6, which will have 128 bits of address space.

Additional internet information

Basic IP Routing

Classed IP Addressing and the Use of ARP

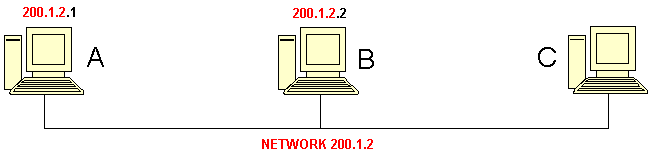

Consider a small internal TCP/IP network consisting of one Ethernet segment and three nodes. The IP network number of this Ethernet segment is 200.1.2. The host numbers for A, B, and C are 1, 2, and 3 respectively. These are Class C addresses, and therefore allow for up to 254 nodes on this network segment.

Each of these nodes have corresponding Ethernet addresses, which are six bytes long. They are normally written in hexadecimal form separated by dashes (02-FE-87-4A-8C-A9 for example).

In the diagram above and subsequent diagrams, we have emphasized the network number portion of the IP address by showing it in red.

Suppose that A wanted to send a packet to C for the first time, and that it knows C's IP address. To send this packet over Ethernet, A would need to know C's Ethernet address. The Address Resolution Protocol (ARP) is used for the dynamic discovery of these addresses [1].

ARP keeps an internal table of IP address and corresponding Ethernet address. When A attempts to send the IP packet destined to C, the ARP module does a lookup in its table on C's IP address and will discover no entry. ARP will then broadcast a special request packet over the Ethernet segment, which all nodes will receive. If the receiving node has the specified IP address, which in this case is C, it will return its Ethernet address in a reply packet back to A. Once A receives this reply packet, it updates its table and uses the Ethernet address to direct A's packet to C. ARP table entries may be stored statically in some cases, or it keeps entries in its table until they are "stale" in which case they are flushed.

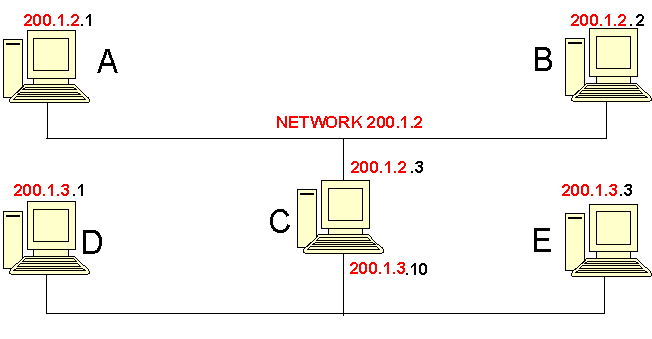

Consider now two separate Ethernet networks that are joined by a PC, C, acting as an IP router (for instance, if you have two Ethernet segments on your server).

Device C is acting as a router between these two networks. A router is a device that chooses different paths for the network packets, based on the addressing of the IP frame it is handling. Different routes connect to different networks. The router will have more than one address as each route is part of a different network.

Since there are two separate Ethernet segments, each network has its own Class C network number. This is necessary because the router must know which network interface to use to reach a specific node, and each interface is assigned a network number. If A wants to send a packet to E, it must first send it to C who can then forward the packet to E. This is accomplished by having A use C's Ethernet address, but E's IP address. C will receive a packet destined to E and will then forward it using E's Ethernet address. These Ethernet addresses are obtained using ARP as described earlier.

If E was assigned the same network number as A, 200.1.2, A would then try to reach E in the same way it reached C in the previous example - by sending an ARP request and hoping for a reply. However, because E is on a different physical wire, it will never see the ARP request and so the packet cannot be delivered. By specifying that E is on a different network, the IP module in A will know that E cannot be reached without having it forwarded by some node on the same network as A.

Direct vs. Indirect Routing

Direct routing was observed in the first example when A communicated with C. It is also used in the last example for A to communicate with B. If the packet does not need to be forwarded, i.e. both the source and destination addresses have the same network number, direct routing is used.

Indirect routing is used when the network numbers of the source and destination do not match. This is the case where the packet must be forwarded by a node that knows how to reach the destination (a router).

In the last example, A wanted to send a packet to E. For A to know how to reach E, it must be given routing information that tells it who to send the packet to in order to reach E. This special node is the "gateway" or router between the two networks. A Unix-style method for adding a routing entry to A is

route add [destination_ip] [gateway] [metric]

Where the metric value is the number of hops to the destination. In this case,

route add 200.1.3.3 200.1.2.3 1

will tell A to use C as the gateway to reach E. Similarly, for E to reach A,

route add 200.1.2.1 200.1.3.10 1

will be used to tell E to use C as the gateway to reach A. It is necessary that C have two IP addresses - one for each network interface. This way, A knows from C's IP address that it is on its own network, and similarly for E. Within C, the routing module will know from the network number of each interface which one to use for forwarding IP packets.

In most cases it will not be necessary to manually add this routing entry. It would normally be sufficient to set up C as the default gateway for all other nodes on both networks. The default gateway is the IP address of the machine to send all packets to that are not destined to a node on the directly-connected network. The routing table in the default gateway will be set up to forward the packets properly, which will be discussed in detail later.

 Static vs. Dynamic Routing

Static routing is performed using a preconfigured routing table which remains in effect indefinitely, unless it is changed manually by the user. This is the most basic form of routing, and it usually requires that all machines have statically configured addresses, and definitely requires that all machines remain on their respective networks. Otherwise, the user must manually alter the routing tables on one or more machines to reflect the change in network topology or addressing. Usually at least one static entry exists for the network interface, and is normally created automatically when the interface is configured.

Dynamic routing uses special routing information protocols to automatically update the routing table with routes known by peer routers. These protocols are grouped according to whether they are Interior Gateway Protocols (IGPs) or Exterior Gateway Protocols. Interior gateway protocols are used to distribute routing information inside of an Autonomous System (AS). An AS is a set of routers inside the domain administered by one authority. Examples of interior gateway protocols are OSPF and RIP. Exterior gateway protocols are used for inter-AS routing, so that each AS may be aware of how to reach others throughout the Internet. Examples of exterior gateway protocols are EGP and BGP. See RFC 1716 [11] for more information on IP router operations.

Each class has a default subnet Mask

The first octet is sub netted is a 8 bit subnet mask all the 0s are on

Class C the first 3 octets are sub-netted, by default the address is 255.255.255.0

The first octet is the network ID

·        /8 = 8 bit subnet mask

·        /16 = 16 bit subnet mask

·        /24 = 24 bit subnet mask

Anding

Anding is the process in which a PC finds the result of binary #s

Anding is the process where it is decided what is a network address and what is the host address then provides results

·        0+1= 0

·        0+0= 0

·        1+0= 0

·        1+1= 1

The address 134.39.10.180 /16 has 16 bits set at 1= 11111111.11111111= 2555.255.0.0

The numbered are network IDs, and the 0s are the host IDs

Vocabulary

·       Wins= Windows Internet Naming Service= The server that runs WINS and is used to resolve NetBios names to IP addresses

·       DNS= Domain Name System

·       DHCP= Dynamic Host Configuration Protocol

·       ROUTING= Moves packets between networks. Routers provide internet-work connectivity.

·       Nat

Overview: 3 hours spent on this class today

Monday, January 07, 2002

 Cat 235 Infrastructure

 Formatting

 Objectives

·        3 partitions

·        Naming conventions

·        IP addressing scheme

·        Windows Server 2000 boot = 4 gigs

·        Another Windows Server 2000 boot =4 gigs

·        Windows Professional 2000 = 4 gigs

Pick a team mate:

 Ginnie is Computer #1

 IP addresses:

·        Professional: 192.168.1.65

·        Server: 192.168.1.66

Computer Names are:

      Professional: T092kpro1

Server:  ( cat 235) T092kdc01

Server ( cat 245)

Cindy Computer # 2

IP addresses:

·        Professional: 192.168.1.68

·        Server: 192.168.1.67

Computer Names

      Professional: T0925pro2

      Server (cat 235) T092kdc02

    Server (cat245) Addc18

What was accomplished Today:

Server was successfully installed. I need to put another Server 2000 on the 2^nd partition. I already have Windows Professional 2000 installed. All that needs to be done  tomorrow is to install another Windows Server 2000 on my last partition.

Overview: I have given 4 hours of study to this class today

January 8, 2002

 Assignment

Show steps:

1. Your computer has to pass packets

2. FTP:\134.39.10.180

Not going to work? Why Not?

3. Assign a static IP address to nic card > additional IP

4>FTP:\\ 134.39.10.180

  Route Print

11111111.00000000.00000000.00000000

Ginnie’s IP Address= Pro 192.168.1.65 =     11000000.10101000.00000001.10000001

255.255.255.255=                                          11111111.11111111.11111111.11111111

192.168.1.65                                                 11000000.10101000.00000001.10000001

Anding

244.0.0.0+ 192.168.1.65=

11110100.00000000.00000000.00000000

11000000.00000000.00000000.00000000

Anding=11000000.00000000.00000000.00000000

255.255.255.255 =

11111111.11111111.11111111.11111111

+   11000000.10101000.00000001.10000001

       11000000.10101000.00000001.10000001= 192.168.1.256

255.255.255.255

11111111.11111111.11111111.11111111

      11000000.10101000.00000001.10000001

           11000000.10101000.00000001.10000001=

192.168.1.256

255.255.255.248.                 11111111.11111111.11111111.1111000

11000000.10101000.00000001.10000001

                          11000000.10101000.00000001.10000000=192.168.1.255

Overview: I got as far as how to figure out how to match the IP numbers for sub netting and the Anding Process, I will continue this tedious process tomorrow. I also finished installing Windows Server on my drive. I have one more Server boot to install.

More calculators at the web sites below

http://www.chattanooga.net/techsupport/ipcalc/IPAddress.htm

http://www.allredroster.com/iptodec.htm

http://jodies.de/ipcalc

Subnetting  tutorial

http://www.ralphb.net/IPSubnet/

Overview: I have given 3 1/2 hours to this study today.

January 9, 2001

Cat 235

Terminal Services: managing a computer from a seperate location, as long as you have the appropriate credentials.

·                     R-click my computer

·                     Properties

·                     Users

·                     Select User

·                     Terminal Services

Create a Cleint:

Start > Programs > Create Client for Terminal Services

Advanced Server

DataCenter Server

Multiprocess

Cluster

How computer's and their environments have progressed:

·                     mainframe with terminals connected to it

·                     moved to the PC and processed ourselves

·                     moving back to hierarchial where a higher powered computer runs most of the processing.

what will slow you down:

·                     # of hard-drives

·                     amount of memory

·                     # of servers

Multi-tasking: Difference between 16-bit and 32-bit; preemptive vs. cooperative

preemptive; ability to operate seperate applications without shutting other apps down.  Allows the processors to be shared, so if one app. closes the others stay up without crashing.

FQDN: fully qualified domain name

SMMP: simple managment protocol

System MIB:

Binding:

In TCP/IP properties:

·                     Click Advanced

·                     Click Add...

·                     Type new address

Name Resolution:

If you ping a FQDN, DNS server will assign an IP address

Where do you get MAC address? sending out a broadcast and asking for it.

Configure hard drive to have:

• Server
• Server               4gigs
• Professional

Teams:

• 16 teams: 1-8 are morning 9-16 are afternoon
• Each team has a set of private IP addresses; 192, 168.  Internet recognizes 192 to be a network.
• We will have very specific naming conventions
• Each team will be isolated

Objectives:

• to get three partitions installed
• follow naming conventions
• follow the IP addressing conventions

What’s going to happen: there will be a change that each team will have a hub.

What we did: Cindy and Ginnie are Team #9.  I had to install one more Server, and she installed both of her Server’s.  We have specific naming conventions and IP addresses;

Ginnie (computer1):

IP addresses:

            Professional: 192.168.1.65

            Server: 192.168.1.66

Names:

            Professional: T092kpro1

            Server (cat235): T092kdc01

            Server (cat245): Addc17

Cindy (computer 2):

IP addresses:

            Professional: 192.168.1.68

            Server: 192.168.1.67

Names:

            Professional: T0925pro2

            Server (235): T092kdc02

            Server (245): Addc18

Overview: 3 1/2 hours spent on this class today

January 14, 2002

Subject

TCP/IP]

Arp-layer 3, internet layer

Leading bit- the leading bit is the first octect and so on

Broadcast is FFFFFFFF

Dora

D-discovery

O-offer

R -request

A-acknowledgment

Commands

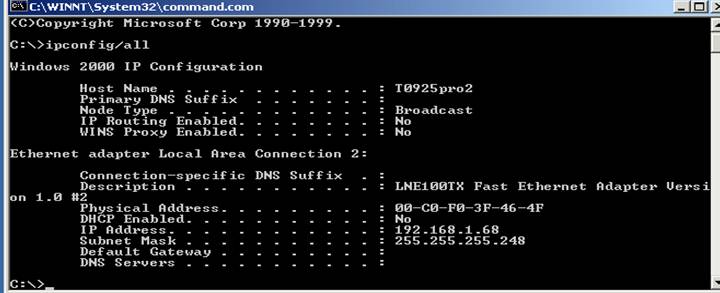

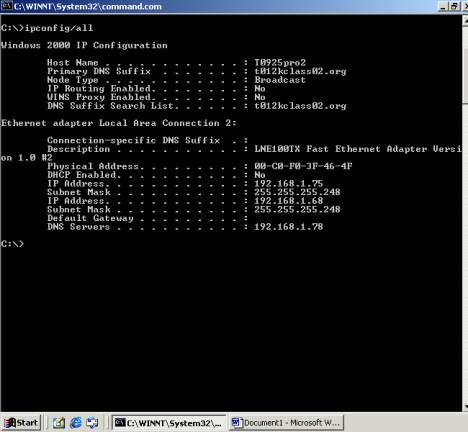

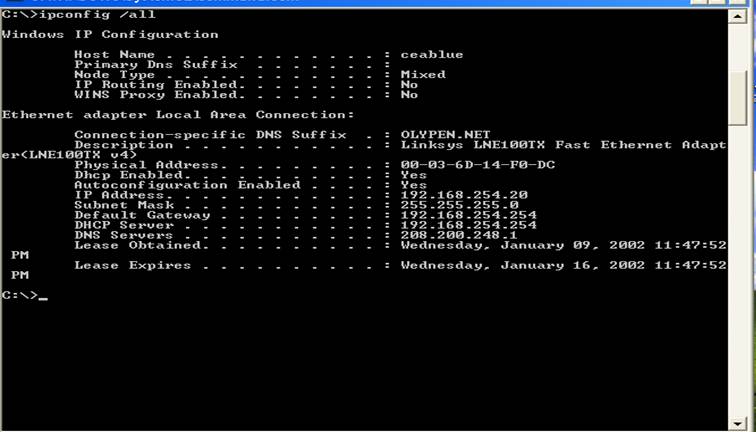

·        ipconfig/all

·        ip registerdns

·        ipconfig

·        traceroute

·

Firewall-ipsec

Rcf792

http://www.faqs.org/rfcs/rfc1925.html

   This Request for Comments (RFC) provides information about the

   fundamental truths underlying all networking. These truths apply to

   networking in general, and are not limited to TCP/IP, the Internet,

   or any other subset of the networking community.

2. The Fundamental Truths

   (1)  It Has To Work.

   (2)  No matter how hard you push and no matter what the priority,

        you can't increase the speed of light.

        (2a) (corollary). No matter how hard you try, you can't make a

             baby in much less than 9 months. Trying to speed this up

             *might* make it slower, but it won't make it happen any

             quicker.

   (3)  With sufficient thrust, pigs fly just fine. However, this is

        not necessarily a good idea. It is hard to be sure where they

        are going to land, and it could be dangerous sitting under them

        as they fly overhead.

   (4)  Some things in life can never be fully appreciated nor

        understood unless experienced firsthand. Some things in

        networking can never be fully understood by someone who neither

        builds commercial networking equipment nor runs an operational

        network.

   (5)  It is always possible to aglutenate multiple separate problems

        into a single complex interdependent solution. In most cases

        this is a bad idea.

   (6)  It is easier to move a problem around (for example, by moving

        the problem to a different part of the overall network

        architecture) than it is to solve it.

        (6a) (corollary). It is always possible to add another level of

             indirection.

   (7)  It is always something

        (7a) (corollary). Good, Fast, Cheap: Pick any two (you can't

            have all three).

   (8)  It is more complicated than you think.

   (9)  For all resources, whatever it is, you need more.

       (9a) (corollary) Every networking problem always takes longer to

            solve than it seems like it should.

   (10) One size never fits all.

   (11) Every old idea will be proposed again with a different name and

        a different presentation, regardless of whether it works.

        (11a) (corollary). See rule 6a.

   (12) In protocol design, perfection has been reached not when there

        is nothing left to add, but when there is nothing left to take

        away.

Security Considerations

   This RFC raises no security issues. However, security protocols are

   subject to the fundamental networking truths.

IPX-SPX-8 bit address

Host files live in Winnt\system32\drivers\ect

Overview: I have given 4 hours to this study today

Labs today: create a domain controller in our teams; using DCPromo.

How to install a DHCP service on our computers:

Go to:

• Control Panel > Add/Remove Programs
• Add/Remove Windows Components
• Scroll to Networking Services
• Click Details…
• Select Dynamic Host Configuration Protocol
• OK

Exercise:

IP config /release

IP config /all to verify address was released

IP config /renew; after Steve removed the router, so this didn’t really work.

Route Print to view the changes to the route table.

IP config /release

IP config /renew-works now because Steve put the router back

DHCP: Address Pool on Steve’s computer: 10.15-10.170

Route add + IP: to bypass the router that was removed.

NetBios name resolved natively: through a broadcast

*Imagine: 254 nodes on the network, and we need to know a NetBios name; this would slow the network down, because the broadcast would be sent to everybody until the name was resolved.

WINS: windows internet name service; the new service to resolve NetBios names without broadcasting.

Example: Coffee cup, marker and pen are tied together with a string, and are “nodes”.  For these objects to talk they must have a common language; which would be TCP/IP and they would also need a unique IP address.  If another comes up without the same subnet, they will not be able to talk, even though they are physically connected. To get them all to talk to each other: put them on the same subnet, use a router, or use IPX/SPX.

Five Operations master roles a domain controller takes on:

1.      PDC emulator:

2.      Infastructure master

3.      Directory services restore mode

4.      Domain naming master

5.      Schema Master

Could also add: DHCP service, WINS server, FTP, terminal services, WWW,

IP address;134.39.10.210          MSCenter.msnetwork.local

                                                                                       Domain Controllers

                                                               MSCenter2

                Steve’s; 134.39.10.180            AMServer

                                                                                      Domain Controllers

                                                                  MSTech

               Cindy’s;134.39.10.182               PMServer

                                                     Pm.fall.msnetwork.local               Domain

Iceburg.pm.fall.msnetwork.local (child)      We can all see each other, because we’re “one big happy subnet” Forest/Trees in the Domain   Taking a look at the teams: Physical/Logical connectivity   Team #9 IP address Host ID Cindy & Ginnie 192.168.1.65 255.255.255.248   11111000 (248) 01000001 (65) 01000000 = 64, which makes network ID 192.168.1.64 (after anding the both IP’s).  This                 team, like all the other teams, is on its own network. *Network number is just one less then the first IP’s   “Stealing Bits”: 255.255.255, there are 8 bits available for hosts that you would “steal”/use.   28 – 2 = 254 23 – 2 = 6   In each domain that you create, you will be getting your IP addresses authorized by the domain controller, as long as those IP’s are within the domain controllers grasp to dish out.   Overview: 3 hours spent on this class today Janurary 17, 2002   Today:             Looking at the history of LAN; ?started of with about 4 PC's.             Take a look at the handout.              Activities:   Open up Network Neighborhood; check things out. Disable netBios over TCP/IP: TCP/IP advanced..properties, WINS, disable.             nbtstat             check out network   IPconfig/all > Node type: to find out which node type you are.             To change: edit registry.   DNS: Active Directory used this to perform all of its communication and directory services.   Windows 2000: relies on directory services   Directory: Is dyanamic, has a hierarchy, it has an organized method to keep track of the obects (printers, O.S., users, comptuers, etc..)   Browser: Can keep track of computers, printers, shares, etc..   Service services: reports changes to server.   QNX:             16th character: in O.S. is used for identifying services, domains, workgroups.   Two Most common services in an NT environment: server, workstation   Messenger Service: net send   When servers talk to servers, they used replication.   To jump from one segment to the other, you must have WINS installed.             Before WINS; LM hosts files did the resolving.   Can use One of these: B-node 0x2: Broadcast node; it means that a computer that wants to talk to another computer broadcasts the machines name to request the IP address.  Once that compouter respondes, you can send something.  If it doesn't respond, you cannot send anything.   P-node Ox4: Peer-to-Peer; you look to the WINS server to request the computer's address you want to send to, and the WINS server figures it out.  This way you are not broadcasting, just talking between yourself, WINS, and responding computer.   M-node Ox6: Mixed; You broadcast first, check WINS server 2nd.   H-node Ox8: hybrid; checks the WINS server first, then broadcasts (if Wins doesn't come through).   Overview: 3 hours spent on this class today January 22, 2002   The Primary purpose of DHCP:  Is to obtain IP addresses. DHCP assigns so many addresses to the DNS server in blocks. The DNS makes a request to the DHCP server for IP addresses. The request is answered by issuing so many addresses. The addresses must be unique. Why is this done, so the networks can access outside their network to the Internet by assigning dynamic addresses. This reduces the administrative load.  How is this done, by determining what class the IP address is. Dora means to discover –send info, the offer is made, the request is met, this is acknowledged and registered. This is configured by   1.Manually configure options on client 2.TCIP properties 3.skip to 4 and 5, scope and server options, in the DHCP snap in.   Scope Options: ·        Can give them a router ·        Name servers ·        DNS servers/IP address ·        Host name ·        Winns /NBT ·        Routers ·        Node type   Scope Options/Server Options   The Client Options:  Wins the options over scope options. If you don’t set anything at the scope, everyone inherits server level options, which is at the bottom of the list. Client Options is to give them something special, must know the clients Mac address, do an ARP –a to obtain the information. Mark the Mac address in dos and copy it to a new reservation for the client. The range of addresses must be in the scope that you have. Paste in the Mac address then add it, click O.K. It reservation automatically inherits the router, DNS server and, name server. Server options are last on the list. If there are no scope options, then server options rule.   Gave the wrong node type: 0x1 is broadcast type 0x2 is p-node 0x3 is h- node   The icons show where lease was configured what kind of server it is. Leases. Where you would find out if the lease has run out or not. Under scope options under properties is where you would set the length of time. Reservations hold your unique ID number, which is your Mac address. Vendor  /user class options. Ipconfig  /setclassid “local area connection” engineer Vender class or you have set up your own server class. Certain clients under the vender class have options, which are Microsoft options/vender options for windows for 2000 and Microsoft options for windows 98. One of the questions you would be asked on the MCSE questions. Should know how to configure scope options. Overview: Quiz on chapter #3 on DHCP. I have entered 7 hours to this course study today.   3 1/2 hours spent on class today 1/28/2002   Purpose of Journal: Is to see where you were a year ago. To look back at the progress you have made. Sties and Services:  In reality one would not see very many domain controllers. Administrative Tools: Users and computers, the domain you are logged on to is the domain you are the member of. You may log onto another domain if you go to users and computers in active directory and browse the domains. A enterprise administrator is able a access any domain, he is all powerful.  Overview: I spent 4 hours today on this class  01/30/02    Joining a Domain   Success in joining Todds Domain!   C:\>              nslookup Default Server:  t102kdco1.t012kclass02.org Address:  192.168.1.78 This is the result we wanted C:\>nslookup *** Can't find server name for address 192.168.1.78: No response from server *** Default servers are not available Default Server:  UnKnown Address:  192.168.1.78 Connected Enabled again to Todds domain C:\>nslookup Default Server:  t102kd Address:  192.168.1.78   Overview: Today I gave 4 hrs to this class   03/11/2003   General Topics: Labs Quiz Study Quiz Questions Work within the objective Overview: I had to get a new hard drive today, I installed one server partition and will install another tomorrow. I also install Nortons and video drivers. 3 1/2 hours spent on class today Wednesday, January 30, 2002 Cat 235 Steve Snyder   Once upon a time:   In the early days of pcs there wre a couple of geeks that got together. They wondered how to make units talk to each other? They came up with Ethernet.  Nic was needed. Each nic needed a mac address (media access control) which is a broadcast. Ethernet is a broadcast based network. We relied on net bios names. We needed a protocol which we call netbios (BetBeui) (extended user interface), which means we have extended the us of the pc to the outside of the pc. All messages are broadcast, if it is not addressed to you, it passes it on, unless it’s destined for you. Each group has it’s own unique mac address. The networking of pcs became so popular that they became over crowded.  The network became slow, so what did we do? We segmented the network. This kept everyone happy J. There’s a problem, we are using a netbeui protocol. We needed a bridge, it lets you get from point a to point b. I lets you keep track of the mac addresses. Now we are pretty happyJ. Local area lans. Hark, what do we hear of the call of, it’s the internet. We hear the call of the cloud. Email, shopping, recourses, there is everything you want on the internet.L Wrong protocal, you can’t go to the internet with netbeui. We need a layer 3 device a network layer. Data is where mr. Bridge lives. Mr. Bridge can take mac addresses and move things from one segment to another. We need a layer 3 device for the internet is level 3 in the osi model, where mr. Router lives, mr cisco, mr. Nortell. Mr routers job is to take an ip address and route it where it is suppose to go, if it has to go outside, send it there. We still need netbios! Our intire operating system, the nos is based on netbios. We need to get from segment to segment using netbios. Netbios /tcp is what we use now. We have an operating system based on all kinds of services we register. We register our own server service. We need to register our workstation service. We have to register our own browser service. The programmers has made a proprietary codes for our pcs. Programmers have coded all these services. They write programs on a modular basis, they write to a common architecture.  Sooo, we have a broadcast based network that’s been jerry rigged to work. Run= Nbtstat –n (netbios/tcp stastics) a report of the services that are running on your machine. The names of the services that you have registered on your network. We are happy campers we can get out to the internet J. We can communicate with everyone as long as we know the ip addresses, but what if we don’t know the addressesL. Hope you can find it, heheee L. We’ll create a file called the lmhost file (netbios name and ip address, domain name). We’ll put a current valid lmhost file of each pc. So our networks continued to grow, the responsible people for the lmhost files stated going nuts. Sooo, they build a service that dynamically updates netbios services and ip addresses, cool! Lets name in wins ( windows internet name service). Now we have a perfected wan, right? Point win server from segment to segment based on ip address, and so on. The perfect local area network that can go outside J. One problem, we can get out, but people from the internet can’t find us, why because of netbios names. We need to be found by our dns names (map host names to ip addresses). DNs is not a dynamic deal, it was static, not a pretty sight! Microsoft took a look and said, we have problems, a real problem!, If we are going ot live in a world that has to deal with all these name, we must redo the operating system. Let’s build the whole thing and base it on dns, one minor little problem, put out a whole new operating system, what about those using older operating systems. So, a new operation system was build, which had backward compatibility. We not only moved on with the new, but made the old work with the new, into a new wayJ. WE now have a gooey interface which makes it pretty and easier to use J.  We want to turn our networks into native mode, (turn of netbios/tcp. Now we need everyone to upgrade to administer this rollover, old fashion to new resolutions. So the moral of the story is, we’ve come along way baby J.   Netbios is a flat naming scheme. Dns is hierarchy rather than a flat naming system, which is based on a structure. We need dns, to communicate with the outside world.   Resolves names: Host files Dns server Wins server Broadcast Lmhostfiles   Wins server setup: wins allows resolution to take place on a non broadcast. Networking services Windows internet services o.k. Programs administrative tools wins Windows internet naming service netbios names or ip address     134.39.10.180 to configure your wins in TCP/IP settings.     Network Monitor:   Overview: I spent 4 hours today on this subject. Monday, February 04, 2002 Cat 235 Troubleshooting DNS Lback = go to run command and enter LDP LDP: Examines the lback connection. =  run command a console comes up, which is a gooey interface. Gives information about a particular server.   Replmon: = run command. Diagnostics that center around replication   http://134.39.10.180./troubleshooting.htm DSA:  = directory systems agent   Diagnosing and trouble shooting active directory problems. The first thing to check is cabling, then event viewer   Net helpmsg = to look up error codes> run net helpmsg code. Netdiag = gives all the test options.   Specifically, the Netdiag tool tests the following: ·                     ·                     Ndis - Netcard queries test ·                     ·                     IpConfig - IP config test ·                     ·                     Member - Domain membership test ·                     ·                     NetBT Transports - NetBT transports test ·                     ·                     Autonet - Automatic Private IP Addressing (APIPA) address test ·                     ·                     IpLoopBk - IP loopback ping test ·                     ·                     DefGw - Default gateway test ·                     ·                     NbtNm - NetBT name test ·                     ·                     WINS - WINS service test ·                     ·                     Winsock - Winsock test ·                     ·                     DNS - DNS test ·                     ·                     Browser - Redir and Browser test ·                     ·                     DsGetDc - DC discovery test ·                     ·                     DcList - DC list test ·                     ·                     Trust - Trust relationship test ·                     ·                     Kerberos - Kerberos test ·                     ·                     Ldap - LDAP test ·                     ·                     Route - Routing table test ·                     ·                     Netstat - Netstat information test ·                     ·                     Bindings - Bindings test ·                     ·                     WAN - WAN configuration test ·                     ·                     Modem - Modem diagnostics test ·                     ·                     NetWare - NetWare test ·                     ·                     IPX - IPX test Run netdiag.exe at the command prompt and scan through the output, looking for words like "FATAL." For more information about the Netdiag tool, see Windows 2000 Support Tools. You may choose a specific test if you know what you need to apply fixes to. Look for words like fatal. Run some of the baselines for your troubleshooting.    Can troubleshoot Network monitor in which you need the full version that sells through Microsoft as a separate package.    Run Ipconfig displaydns D:\DOCUME~1\CBENNETT>ipconfig displaydns   Windows 2000 IP Configuration   Error: Unrecognized command line argument "displaydns"     USAGE:    ipconfig [/? | /all | /release [adapter] | /renew [adapter]             | /flushdns | /registerdns             | /showclassid adapter             | /setclassid adapter [classidtoset] ]      adapter    Full name or pattern with '*' and '?' to 'match',               * matches any character, ? matches one character.    Options        /?           Display this help message.        /all         Display full configuration information.        /release     Release the IP address for the specified adapter.        /renew       Renew the IP address for the specified adapter.        /flushdns    Purges the DNS Resolver cache.        /registerdns Refreshes all DHCP leases and re-registers DNS names        /displaydns  Display the contents of the DNS Resolver Cache.        /showclassid Displays all the dhcp class IDs allowed for adapter.        /setclassid  Modifies the dhcp class id.   The default is to display only the IP address, subnet mask and default gateway for each adapter bound to TCP/IP.   For Release and Renew, if no adapter name is specified, then the IP address leases for all adapters bound to TCP/IP will be released or renewed.   For SetClassID, if no class id is specified, then the classid is removed.   Examples:     > ipconfig                       ... Show information.     > ipconfig /all                  ... Show detailed information     > ipconfig /renew                ... renew all adapaters     > ipconfig /renew EL*            ... renew adapters named EL....     > ipconfig /release *ELINK?21*   ... release all matching adapters,                                          eg. ELINK-21, myELELINKi21adapter.    Run Netlogin gives you all the information you need to configure and all about your system, use this as a baseline Rpc sever in unavailable? What does this mean?  There is no replication. Nslookup: Another trouble shooting method Test Tomorrow! 3 1/2 hours spent on class today Thursday, January 31, 2002 Wins : how we used to resolve names is in the lmhost files ( winnt\system32\drivers\ect We do not have to use dns unless we want to use active directory. We can get by with a wins server. TCP/IP protocals: Wins tab, add or remove wins servers, can enable lmhost files there. Lmhost files are static, wins is not static.   Broadcast don't pass from segment to segment.   Name resolutions could be in the form of a lmhost file.nbtstat-R-R release in wins, Purges the remote cache name. ping win2000as: Looks for local host name, then local host files, then to dns server, then wins server, then braodcast on this segment, then lmhost file. This is called mixed mode and backward compatibility. The most efficient way to do this is with a wins service. We would not have to have name resolution if we could just store ip addresses, but the computer doesn't work like that.   TCP/IP properties to congigure wins 134.39.10.2000 no lmhost file   nbtstat -n is a report of names and services of wins database. Can point all clients to ip address on all segments. or wins servers on different segment, which is a push or pull replication, push is pushing to another segment, pull is pulling from another segment. Have to set up a replication partner, then schedule how it's going to take place.   When there is connection you should be able to ping win2000as.   run, ipconfig/all, shows you if you are registered in the database, who is your primary wins server is. what mode you are in as in hybrid , broadcast or peer to peer and mixed mode.   Wins settings Replication partner, new replication, thne win2000as, properies, push or pull, then advanced, by default replication is usually every 30 minutes.     Can resolve IPs with wins server, lmhost files, broadcast.   If you are using terminal services it does the last thing your did, dont' restart the comuter.   Test on chapter #4 questions are up on 134.39.10.180/dns.htm   I donated 3 hours to class today Tuesday, February 05, 2002 Steve Snyder cat 135     LDP:   Port 389 is the port that LDP uses. The account your is Iuser_name of the account.     Netdiag is a utility the can troubleshoot many test on your computer, such as Indus test network device specification.  Wind sock test, domain controller discovery, ldaptest,  modem test, ip security, plus this utility does many more test. This does not do a port test, so one would want to add this to your trouble-shooting list of things to do. Netdiag should be one of the first things your do if you are having network problems. The results you want to see is: Active Directory has replicated. If all these test pass, this is a good time to back up your system. Netdaig /? Netdiag  dns shows you’re your dns settings and what might be wrong Netdiag  /test:dns   tells you if your dns has passed or not. Gives valid test you may run. Always check your event viewer for warnings, information and errors to troubleshoot your network.  Run replmon: shows your who your are replicating with and when the last replication took place. You may force replication in sites and services in Active Directory. The tool replmon shows the replication topology. Active Directory Replicate Monitor or sites and service click on any one of the domain controllers. Nslookup 139.34.10.180 Gives network that Steve is on amserver.fall.msnetwork.local   The good side of dns integrated is a double edge sword, it effects both sides. You may change your integrated to standard primary. Protocols Ethernet The Ethernet protocol is by far the most widely used. Ethernet uses an access method called CSMA/CD (Carrier Sense Multiple Access/Collision Detection). This is a system where each computer listens to the cable before sending anything through the network. If the network is clear, the computer will transmit. If some other node is already transmitting on the cable, the computer will wait and try again when the line is clear. Sometimes, two computers attempt to transmit at the same instant. When this happens a collision occurs. Each computer then backs off and waits a random amount of time before attempting to retransmit. With this access method, it is normal to have collisions. However, the delay caused by collisions and retransmitting is very small and does not normally effect the speed of transmission on the network. The Ethernet protocol allows for linear bus, star, or tree topologies. Data can be transmitted over twisted pair, coaxial, or fiber optic cable at a speed of 10 Mbps. Fast Ethernet To allow for an increased speed of transmission, the Ethernet protocol has developed a new standard that supports 100 Mbps. This is commonly called Fast Ethernet. Fast Ethernet requires the use of different, more expensive network concentrators/hubs and network interface cards. In addition, category 5 twisted pair or fiber optic cable is necessary.   LocalTalk LocalTalk is a network protocol that was developed by Apple Computer, Inc. for Macintosh computers. The method used by LocalTalk is called CSMA/CA (Carrier Sense Multiple Access with Collision Avoidance). It is similar to CSMA/CD except that a computer signals its intent to transmit before it actually does so. LocalTalk adapters and special twisted pair cable can be used to connect a series of computers through the serial port. The Macintosh operating system allows the establishment of a peer-to-peer network without the need for additional software. With the addition of the server version of AppleShare software, a client/server network can be established. The LocalTalk protocol allows for linear bus, star, or tree topologies using twisted pair cable. A primary disadvantage of LocalTalk is speed. Its speed of transmission is only 230 Kbps. Token Ring The Token Ring protocol was developed by IBM in the mid-1980s. The access method used involves token-passing. In Token Ring, the computers are connected so that the signal travels around the network from one computer to another in a logical ring. A single electronic token moves around the ring from one computer to the next. If a computer does not have information to transmit, it simply passes the token on to the next workstation. If a computer wishes to transmit and receives an empty token, it attaches data to the token. The token then proceeds around the ring until it comes to the computer for which the data is meant. At this point, the data is captured by the receiving computer. The Token Ring protocol requires a star-wired ring using twisted pair or fiber optic cable. It can operate at transmission speeds of 4 Mbps or 16 Mbps. Due to the increasing popularity of Ethernet, the use of Token Ring in school environments has decreased. FDDI Fiber Distributed Data Interface (FDDI) is a network protocol that is used primarily to interconnect two or more local area networks, often over large distances. The access method used by FDDI involves token-passing. FDDI uses a dual ring physical topology. Transmission normally occurs on one of the rings; however, if a break occurs, the system keeps information moving by automatically using portions of the second ring to create a new complete ring. A major advantage of FDDI is speed. It operates over fiber optic cable at 100 Mbps. Overview: 3 hours spent on this class today   Thursday, February 07, 2002 Cat 235 Steve Snyder   We are known as the isolated group at Peninsula College. When our students would create domains you would have a lot of domain controllers popping up, so they thought it would be best to isolate the cisco block. The address is 134.39.10.1-254. Some of these addresses are reserved for printers, routers, dhcp scope, and domain controllers. There is no way to send packets to the other side of the college, unless by magic J. Will, yesterday one of these packets flew through air and landed on our segment. Was s magic? No, some of our ip addresses were being dished out to the other segment.  Long story short, a physical connection was being made to the other side. One port was connected to their port. They didn’t realize they were connecting two segments togetherJ. Oops.   Remote Access: DHCP addresses and leases Address Pool Reservations Scope Options Server Options   nslookup lwixpinstructor.wetc.ctc.edu 134.39.10.21     Remote access requires additional addresses or you can plug them in manually or get them from your dhcp server.  When you run remote access you initially get a block of ten addresses, you may request additional addresses if you need them. You can give yourself more than one address. Remote access is like your personal html site with restrictions on it, you may add or exclude certain ip numbers.   We just left the 10.180 network, poof! Bye bye uncle albert. Can not ping this address anymore.   Make a new connection, to someone who cares J.   One of the easiest away access resources is to enter the ip address in the run command. Point to point protocol techniques. Connect using terminal services. Terminal Services Client is how to connect to any other machine. Run enter ip address Setting, network dial up, make new connection, accept incoming connections, next, enter ip address. These are the steps on the clients machine you must configure to have access to another maching. Go to users and computers find the account, go to properties, to remote access, and enable dial in access, apply. Go to run command enter Ip address got connect to the clients computer. Do tracert of ip address , it’s takes you straight to the clients computer. Go to entire network, windows network, open it, this is what you access to on the clients computer. Overview: I spent 3 hours class time Lab Time 2 hrs. lab time Study Time 2 hrs. Monday, February 11, 2002   Ras: Ras: allows a clients to come onto your network in secure fashion. Modem DSL Internet, are some of the ways users can get to your network through ras   Create a user called afternoon ras, give password, then create 15 other users. Create a new group, which is a global group, we’ll call it ras group. O.k.. Go to ras group, then we populate it. We may put in multiple users into this ras group. The group is a global group. Then launch your remote access. By default you get 5 possible ppt connections and 5 level two tunnel protocols, we will change this number to 2 prots.  Go to your ports, click on properties, change the maximum ports to 2.   Go to routing and remote access policy, right click it, open new policy.  Name this policy, put conditions on it, such as windows group, click add, search for group called ras group, o.k.. Now everyone in this ras group gets this policy. Allow remote access, by default there is no dial in restraints, such as idle for a minute what would you like to do with them, this is where you set the restrictions. Restrict to Ethernet only is you wish. Where do they get their ip addresses? This is where one would edit dial-in properties such as what kind of connection you would have and what kind of encryption.  Am server policies, configure these properties.   Switch to Native Mode to Mixed Mode: connect to domain controller msnetwork.local look at the properties and change mode in general. This cannot be reversed. Overview: 3  1/2 hours spent on this class today   Tuesday, February 12, 2002 Cat 235 Snyder    Scanning the network: Do not scan 10.1 in the future.   SNMP: Simple Management Protocol    Community string: scan is set on public it is possible to get information on a pertaining to network IP addresses and machines they are assigned to when a network scan is done.   How to change administrative tools, services, SNMP services, traps, by default public is set. If you are a network admin, you should use a trap you know about. Use any word you would like, this would be your own private word. This is how you turn off the public trap.  The same goes for a router. IF you take away the trap, it takes out the public string. When you have you bios enabled you may look at all the services running on the machine, and who has accounts. This is how one would get information to get into a computer.  You may access a network with network sniffer. www.cert.org  this is where you would go to get info on latest alerts, updates, security, buffer overflows and other information.. Rras:   Disconnect from the internet first: Rras: Configure server to dish out ip addresses, then client needs to set up a rras server, points it to the sp. Wednesday, February 13, 2002 Cat 235 S. Snyder Overview: We spent 2 ½ hours on going over the test for Thursday. L I mean J Thursday, February 21, 2002 Remote access Protocols: Point to Point Protocol ( PPP): an industry standard set of robust and flexible protocols, by far the most common remote access protocol used today. Most dial-in servers, including RRAS, support PPP, and it is generally considered the best choice for emote access situations. Windows 2000 RRAS supports PPP both for dial-out and dial-in connections. Serial Line Interface Portocol (SLIP): an older protocol developed in UNIX and still widely used. Windows 2000 RRAS supports SLIP in dial-out configurations, but can not use a SLIP client to dial in to a RRAS server.   RAS Protocol: a proprietary protocol, used only between microsoft-based networks, that supports the netbios naming convention. It is required to support netbios naming and is installed by default when you install the RRAS server.   NetBios Gateway: provided compatibility with older versions of RAS server that do support networking protocols such as TCP?IP and NWLink. The NetBios gateway translates data from NetBEUI protocol to these other protocols http://www.cert.org/ snmp is vulnerable and make affect many systems. http://www.cert.org/advisories/   Lab book for network infrastructure from last year. Thumb through the objectives to see if you are meeting some of the objectives. Overview: 3  1/2 hours spent on this class today Cat 235 Wednesday, February 20, 2002   Routing: Direct routing occurs when both the source and destination host are on the same network segment. Consider a small IP subnet with only three host (A. B, and C), all wired directly together. Group A Group B   Group C  Group B=Us IPs  Cindy 1.2 Todd 1.4 Ginnie 1.3 Brook 1.6 Default gateway todd 2nd gateway 1.4 second gateway  Tuesday, March 11, 2003 Quiz Study Overview: I donated 2 hours today to this subject. Wednesday, February 27, 2002 Cat 235 Sonet is the acronym for Synchronous Optical Network and is a set of standards establishing optical interface specifications, signal rates, format specifications, and operations specifications for synchronous optical network. Sonet specifies standard multiplexing functions, as well as, electrical and optical line rates for telecommunications equipment. It will eventually specify operations, administration, maintenance and provisioning (OAM&P) communications between telecommunications equipment, providing end-to-end (OAM&P) functionality through the network even when the equipment has been built by different equipment manufacturers.   Fiber optics Uses: Internet Cell phone Banks Internet   Fiber Optics, branch of optics dealing with the transmission of light through fibers or thin rods of glass or some other transparent material of high refractive index. If light is admitted at one end of a fiber, it can travel through the fiber with very low loss, even if the fiber is curved. The principle on which this transmission of light depends is that of total internal reflection: Light traveling inside the fiber center, or core, strikes the outside surface at an angle of incidence greater than the critical angle so that all the light is reflected toward the inside of the fiber without loss. Thus light can be transmitted over long distances by being reflected inward thousands of times. In order to avoid losses through the scattering of light by impurities on the surface of the fiber, the optical fiber core is clad with a glass layer of much lower refractive index; the reflections occur at the interface of the glass fiber and the cladding. The simplest application of optical fibers is the transmission of light to locations otherwise hard to reach, for example, the bore of a dentist's drill. Also, bundles of several thousand very thin fibers assembled precisely side by side and optically polished at their ends, can be used to transmit images. Each point of the image projected on one face of the bundle is reproduced at the other end of the bundle, reconstituting the image, which can be observed through a magnifier. Image transmission by optical fibers is widely used in medical instruments for viewing inside the human body and for laser surgery, in facsimile systems, in phototypesetting, in computer graphics, and in many other applications. Optical fibers are also being used in a wide variety of sensing devices, ranging from thermometers to gyroscopes. The potential of their applications in this field is nearly unlimited, because the light sent through them is sensitive to many environmental changes, including pressure, sound waves, and strain, as well as heat and motion. The fibers can be especially useful where electrical effects could make ordinary wiring useless, less accurate, or even hazardous. Fibers have also been developed to carry high-power laser beams for cutting and drilling. Sonet: Synchronous sonnet network. It is a Set of standards that allows other protocols to travel inside it. It also allows different protocols to be on at the same time. OC = Optical Carrier STS = Synchronous Transport signal STM = Synchronous Transport Mode VT = Virtual Tributary TU = Tributary Unit   Sonet Topologies   Sonet defines equipment generically as network elements (Nes). Sonet Nes include terminals, regenerators, add/drop multiplexers and digital cross connect switches.   The terminal NE is capable of multiplexing a variety of digital or optical tributaries into a Sonet based optical signal for transmission into the network. Signal inputs include, but are not limited to DS_N, STS-N, ATM, B-ISDN, and OC-N optical tributaries. The terminal must maintain all signals within specified limits, process alarms, and communicate with the network management systems as well as the NEs it is connected to.   Protection Switching Definitions: Line Switching: Unidirectional: Bi-directional: Revertive: Non-Revertive :   Sonet Rings Several different types of sonnet rings exist: 2-fiber unidirectional path w\switched rings (UPSR). These rings are switched at DS_3 or STS-1 level. 4-fiber bi-directional line switched rings )BLSR). These rings are switched at the high speed or line overhead (LOH) level. 2-fiber bi-directional line switched rings (BLSR). Overview: 4 hours spent on this class today Cat 235 S. Snyder Thursday, February 28, 2002 http://134.39.17.14/certsrv/ Certificates 1.Get hotmail account 2.Go to verisign to get certificate 3.Install certificate Have a friend to the exact same thing to get their key 4. Exchange public keys Whala,  now you can send encrypted messages with you public key so you can decrypt it with you private key.   Study Guide for this weekend:  http://134.39.10.216/ipsec.htm Monday, 4th, 2000 We did labs today ipsec chapter 8 hours donated 3 1/2 hours Monday, 5th, 2000 ipsec We caught up on labs today all day ( teacher absent). hours spent 4 hours Thursday March, 8th We resolved ip addresses and did the anding process on them :) Anding: Are we ready to And L no, I mean yeahh Do anding for packet addressed to 134.39.10.1   10000110.000100111.00001010.00000001=134.39.10.1 11111111.111111111.11111111.11111111= 255.255.255.255 10000110.000100111.00001010.00000001= 134.39.10.1       10000110.000100111.00001010.00000001=134.39.10.1 11100000.000000000.00000000.00000000 =244.0.0.0 10000000.000000000.00000000.00000000=128.0.0.0     10000110.00010011.00001010.00000001=134.39.10.1 11111111.11111111.11111111.11111111= 255.255.255.255 10000110.00010011.00001010.00000001=134.39.10.1     10000110.00010011.00001010.00000001=134.39.10.1 11111111.11111111.11111111.11111111= 255.255.255.255 10000110.00010011.00001010.00000001=134.39.10.1     10000110.00100111.00001010.00000001=134.39.10.1 11111111.11111111.11111111.00000000=255.255.255.0 10000110.00100111.00001010.00000000=134.39.10.0=Gateway134.39.10.66     Anding for packet address to  192.168.0.2   11000000.10101000.00000000.00000010 =192.168.0.2 11111111.11111111.11111111.11111111=255.255.255.255 11000000.10101000.00000000.00000010=192.168.0.2   11000000.10101000.00000000.00000010 =192.168.0.2 11110100.00000000.00000000.00000000= 124.0.0.0 11000000.00000000.00000000.00000000=224.0.0.0   11000000.10101000.00000000.00000010 =192.168.0.2 11111111.11111111.11111111.11111111 =255.255.255.255 11000000.00000000.00000000.00000000=192.0.0.0   11000000.10101000.00000000.00000010 =192.168.0.2 11111111.11111111.11111111.11111111 =255.255.255.255 11000000.00000000.00000000.00000000=192.0.0.0   11000000.10101000.00000000.00000010 =192.168.0.2 11111111.11111111.11111111.00000000 =255.255.255.0 11000000.00000000.00000000.00000000=192.0.0.0     11000000.10101000.00000000.00000010 =192.168.0.2 11111111.00000000.00000000.00000000 =255.0.0.0 11000000.00000000.00000000.00000000 =192.0.0.0   11000000.10101000.00000000.00000010 =192.168.0.2 00000000.00000000.00000000.00000000 =0.0.0.0 00000000.00000000.00000000.00000000 =0.0.0.0= Default Gateway 134.39.10.1       Anding for a packet addressed to 134.39.2.118 10000110.000100111.00000010.01110110=134.39.2.118 11111111.111111111.11111111.11111111=255.255.255 10000110.000100111.00001010.00000001=134.39.10.1   10000110.000100111.00001010.00000001=134.39.2.118 11111111.111111111.11111111.11111111=255.255.255 10000110.000100111.00001010.00000001=134.39.10.1   10000110.000100111.00001010.00000001=134.39.2.118 11111111.111111111.11111111.00000000=255.255.255.0 10000110.000100111.00000010.00000000=134.39.2.0   10000110.000100111.00001010.0000001=134.39.2.118 11111111.00000000.00000000.00000000=255.0.0.0 10000110.00000000.00000000.00000000= 134.0.0.0     10000110.000100111.00001010.00000001=134.39.2.118 00000000.00000000.000000000.00000000=0.0.0.0 00000000.00000000.000000000.00000000 =0.0.0.0. Gateway 134.39.10.1 Anding for a packet addressed to 134.39.2.118   10000110.000100111.00001010.00000001   That was hard! whew!   Overview, 4  hours donated WHEW! . Monday, March 11, 2002 Cat 235 How to configure Nat service in 2000 www.support.micosoft.com Q310357 300851  ipsec1.htm nat.htm cert.htm216   Nat: network address translation protocol Nat: who ever is the server is how good your connection is. If you have a modem it would be slower than T connection. Nat is not an actual protocol. Nat does not use ip, but it is it’s own routable protocol. The only configuration you do with nat is transferred tcp and ip headers.  Additional Information from internet resources NAT Editor API A device that runs NAT is a gateway between the Internet and a home network. In order for the gateway to provide devices on the home network with full access to the resources of the public network, packets need to move fluidly across the gateway that runs NAT. A gateway that runs NAT translates information in packets that move across the gateway, converting an IP address and port for a device on the home network to an IP address and port for the public side of the gateway machine. These port mappings allow devices on the home network to share one public-side IP address. The NAT driver is responsible for translating address and port information for Transmission Control Protocol (TCP) and User Datagram Protocol (UDP) traffic. Certain kinds of protocol traffic, however, cannot be translated by the NAT without further information. Protocols of this type include: ·                     Protocols that involve unsolicited connection requests, or UDP data channels, from the public network. ·                     Protocols that embed network address or port information in the data stream. Examples of protocols that have these characteristics include File Transfer Protocol (FTP) and Point-to-Point Tunneling Protocol (PPTP). The NAT driver included in the , Microsoft® Windows® CE operating system handles these two protocols internally. To handle other protocols that have such characteristics, Windows CE provides a module that allows OEMs to create a specialized NAT editor that examines network packets to obtain the information needed to translate the protocol traffic.  Overview 2 hours to labs today   Cat 235 PKI Public key infrastructure: PKI:  Proof of who you are and is much better than the shared key. Is also better than a shared key.   Identity theft: Public key and private key is a matched set. Send public keys and keep the private key. Decrypt with public and decrypt with private.   Certificate of authority: People who hold public and private keys.   Log rhythm is a way to solve particular problems.   Digitally sign: You use your private key to digitally sign.   X.509 certificates: EFS Key: Public and Private Key 2 mmc’s   Certificates management tools: you may import and export certificates. Certificates can be acquired in a number of ways. PKI is a leader in the field by verisign. Mmc is used at the client level to manage certificates. You may also add a certificate of authority.   Once installed you may select the kind of ca you would like to be. You don not have to be in the active directory to be a stand alone.   When you set you CA up: Name Organization Organizational Unit-not ad version Email CA description Valid for 2 years You may use web enrollment to deliver certificate.  Overview: 3 hours spent on this class today Thursday, March 14, 2002                                           Cert of Authority 1.Host A                                               Host B request cert               Cert                    Cert          Authority                  Authority   2. Host A installs cert, which creates public and private key. Host B installs Cert creates key 3. Host A: Emails to B, digital sign contains A’s Public Key. Host B emails A digitally signed, contains B’s public key 4. Host A email address book host B + B’s Public key. Host B emails to Host a, digitally signs and encrypts   Today we’ll: Install certificate services Let instructor know you ip address Manage Cert Snap in Client snap in   Get comfortable with MMC’s   Overview: I donated 3 1/2 hours today to this class. Total Time this quarter is 82 hours   Steve Snyder:A Job will done, Keep up the good work!

Cat 235 S. Snyder

Thursday, February 28, 2002

http://134.39.17.14/certsrv/

Certificates

1.Get hotmail account

2.Go to verisign to get certificate

3.Install certificate

Have a friend to the exact same thing to get their key

4. Exchange public keys

Whala,  now you can send encrypted messages with you public key so you can decrypt it with you private key.

Study Guide for this weekend:

http://134.39.10.216/ipsec.htm

Monday, 4th, 2000

We did labs today

ipsec chapter 8

hours donated 3 1/2 hours

Monday, 5th, 2000

ipsec

We caught up on labs today all day ( teacher absent).

hours spent 4 hours

Cat 235 S. Snyder

Thursday, February 28, 2002

http://134.39.17.14/certsrv/

Certificates

1.Get hotmail account

2.Go to verisign to get certificate

3.Install certificate

Have a friend to the exact same thing to get their key

4. Exchange public keys

Whala,  now you can send encrypted messages with you public key so you can decrypt it with you private key.

Study Guide for this weekend:

http://134.39.10.216/ipsec.htm

Monday, 4th, 2000

We did labs today

ipsec chapter 8

hours donated 3 1/2 hours

Monday, 5th, 2000

ipsec

We caught up on labs today all day ( teacher absent).
